STF31N65M5 - N-Channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

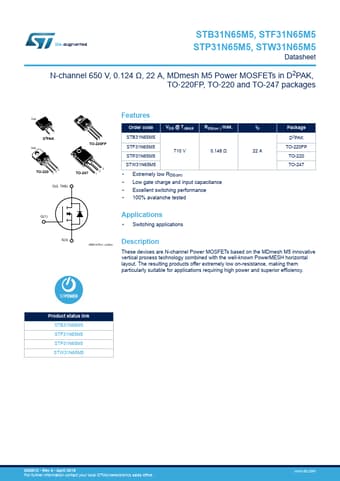

STF31N65M5 Datasheet Preview — Preview of STF31N65M5 PDF

Datasheet Details

Part number	STF31N65M5
Manufacturer	STMicroelectronics
File Size	1.10 MB
Description	N-Channel Power MOSFET
Datasheet	STF31N65M5-STMicroelectronics.pdf

STF31N65M5 Product details

Description

AM01475v1_noZen These devices are N-channel Power MOSFETs based on the MDmesh M5 innovative vertical process technology combined with the well-known PowerMESH horizontal layout.The resulting products offer extremely low on-resistance, making them particularly suitable for applications requiring high power and superior efficiency.Product status link STB31N65M5 STF31N65M5 STP31N65M5 STW31N65M5 DS8912 - Rev 4 - April 2019 For further information contact your local STMicroelectronics sales off

Features

Order code VDS @ TJMAX RDS(on ) max. STB31N65M5 STF31N65M5 STP31N65M5 710 V 0.148 Ω STW31N65M5.
Extremely low RDS(on).
Low gate charge and input capacitance.
Excellent switching performance.
100% avalanche tested ID 22 A Package D2PAK TO-220FP TO-220 TO-247 G(1).
