STF32NM50N N-Channel MOSFET

STF32NM50N Description

isc N-Channel MOSFET Transistor *.
Drain Current: ID= 22A@ TC=25℃. Drain Source Voltage : VDSS= 500V(Min). 100% avalanche tested. Minimum Lot-to-Lot variations for robu.

STF32NM50N Applications

* Switching applications ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±25 V ID Drain Current-continuous@ TC=25℃ 22 A ID(puls) Pulse Drain Current 88 A Ptot Total Dissipation@TC=25℃ 35 W Tj Max

📥 Download Datasheet

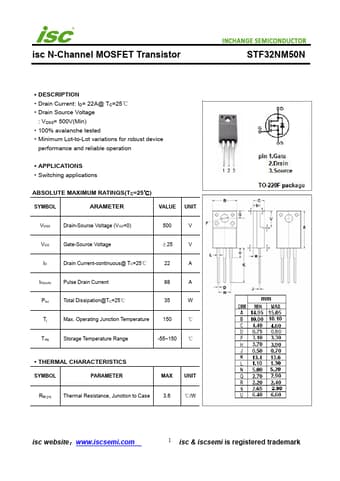

Preview of STF32NM50N PDF
datasheet Preview Page 2

Datasheet Details

Part number
STF32NM50N
Manufacturer
INCHANGE
File Size
217.01 KB
Datasheet
STF32NM50N-INCHANGE.pdf
Description
N-Channel MOSFET
