STF32N65M5 - N-channel MOSFET

Name: STF32N65M5
SKU: STF32N65M5-848599

STMicroelectronics

📥 Download Datasheet

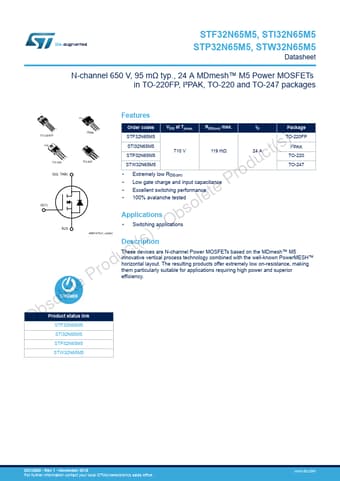

STF32N65M5 Datasheet Preview — Preview of STF32N65M5 PDF

Datasheet Details

Part number	STF32N65M5
Manufacturer	STMicroelectronics
File Size	817.05 KB
Description	N-channel MOSFET
Datasheet	STF32N65M5-STMicroelectronics.pdf

STF32N65M5 Product details

Description

These devices are N-channel Power MOSFETs based on the MDmesh™ M5 innovative vertical process technology combined with the well-known PowerMESH™ horizontal layout.

Features

TAB 3 12 TO-220FP ) TAB t(s 3 c 2 TO-220 1 rodu D(2, TAB) lete P G(1) roduct(s) - Obso S(3) I2PAK 1 2 3 3 12 TO-247 Order codes VDS at Tjmax. RDS(on) max. ID STF32N65M5 STI32N65M5 STP32N65M5 710 V 119 mΩ 24 A STW32N65M5.
Extremely low RDS(on).
Low gate charge and input capacitance.
Excellent switching performance.
100% avalanche tested Package TO-220FP I2PAK TO-220 TO-247 AM01475v1_noZen.
