STF36N60M6 N-CHANNEL POWER MOSFET

STMicroelectronics

STF36N60M6 Description

STF36N60M6 Datasheet N-channel 600 V, 85 mΩ typ., 30 A MDmesh™ M6 Power MOSFET in a TO-220FP package 23 1 TO-220FP D(2) G(1) .
The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs.

STF36N60M6 Features

* Order code VDS RDS(on) max. STF36N60M6 600 V 99 mΩ
* Reduced switching losses
* Lower RDS(on) per area vs previous generation
* Low gate input resistance
* 100% avalanche tested

STF36N60M6 Applications

* Switching applications
* LLC converters

📥 Download Datasheet

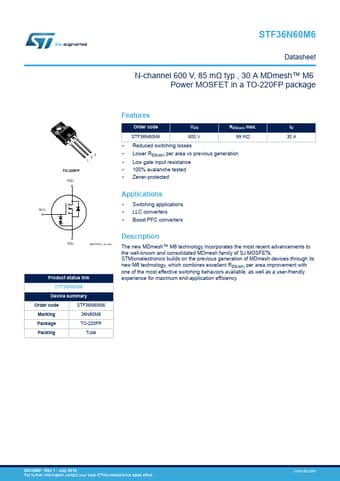

STF36N60M6 Datasheet Preview — Preview of STF36N60M6 PDF

Datasheet Details

Part number: STF36N60M6
Manufacturer: STMicroelectronics ↗
File Size: 237.98 KB
Datasheet: STF36N60M6-STMicroelectronics.pdf
Description: N-CHANNEL POWER MOSFET
