STF3LN80K5 N-channel Power MOSFET

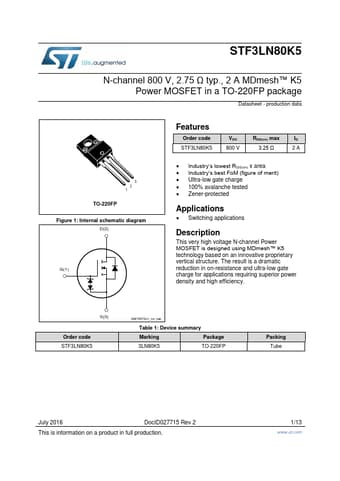

📥 Download Datasheet Datasheet Preview Page 1

Description

STF3LN80K5 N-channel 800 V, 2.75 Ω typ., 2 A MDmesh™ K5 Power MOSFET in a TO-220FP package Datasheet - production data TO-220FP Figure 1: Internal s.
This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

📥 Download Datasheet

Preview of STF3LN80K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Order code STF3LN80K5 VDS 800 V RDS(on) max 3.25 Ω ID 2A
* Industry’s lowest RDS(on) x area
* Industry’s best FoM (figure of merit)
* Ultra-low gate charge
* 100% avalanche tested
