STF45N65M5 - N-channel Power MOSFET

STMicroelectronics

STF45N65M5 Datasheet Preview — Preview of STF45N65M5 PDF

Datasheet Details

Part number	STF45N65M5
Manufacturer	STMicroelectronics ↗
File Size	1.60 MB
Description	N-channel Power MOSFET
Datasheet	STF45N65M5-STMicroelectronics.pdf

STF45N65M5 Product details

Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

Features

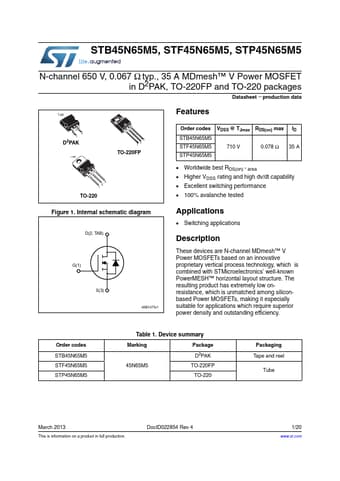

2 3 1 D2PAK TAB 3 2 1 TO-220FP 3 2 1 TO-220 Order codes VDSS @ TJmax RDS(on) max ID STB45N65M5 STF45N65M5 710 V 0.078 Ω 35 A STP45N65M5.
Worldwide best RDS(on).
area.
Higher VDSS rating and high dv/dt capability.
Excellent switching performance.
100% avalanche tested Figure 1. Internal schematic diagram $4!" ' 3 !-V.
