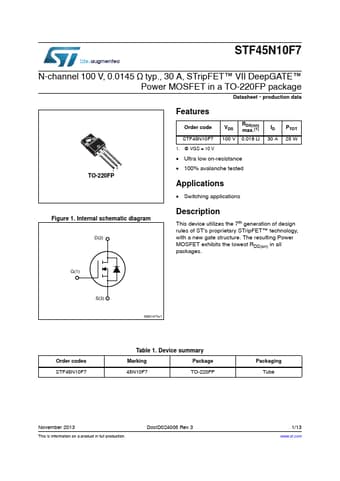

STF45N10F7 Datasheet, Mosfet, STMicroelectronics

STF45N10F7 Features

• Mosfet Order code STF45N10F7 VDS 100 V RDS(on) max.(1) 0.018 Ω ID 30 A PTOT 25 W 1. @ VGS = 10 V
• Ultra low on-resistance
• 100% avalanche tested Applications

PDF File Details

Part number:

STF45N10F7

Manufacturer:

STMicroelectronics ↗

File Size:

790.74kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. th This device utilizes the 7 generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure. The res

STF45N10F7 Application

• Applications
• Switching applications Figure 1. Internal schematic diagram ' Description th This device utilizes the 7 generation of de
