STF4N80K5 Datasheet, Mosfet, STMicroelectronics

STF4N80K5 Features

• Mosfet Order codes VDS RDS(on) max ID STD4N80K5 STF4N80K5 800 V STP4N80K5 2.5 Ω 3A STU4N80K5
• Outstanding RDS(on)
• area
• Worldwide best FOM (figure of merit)

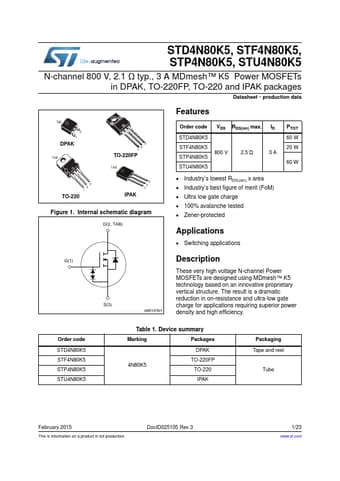

PDF File Details

Part number:

STF4N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

1.21MB

Download:

📄 Datasheet

Description:

N-channel mosfet. These N-channel Zener-protected Power MOSFETs are designed using ST’s revolutionary avalanche-rugged very high voltage SuperMESH™ 5 t

STF4N80K5 Application

• Applications
• Switching applications
•  6 AM01476v1 Description These N-channel Zener-protected Power MOSFETs are designed
