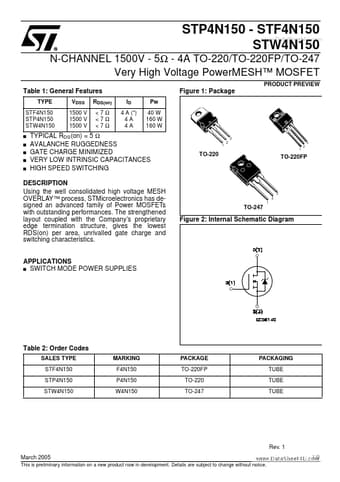

STF4N150 Datasheet, mosfet equivalent, STMicroelectronics

STF4N150 Features

• Mosfet TYPE STF4N150 STP4N150 STW4N150 s s s s s Figure 1: Package ID 4 A (
• ) 4A 4A Pw 40 W 160 W 160 W 3 1 2 VDSS 1500 V 1500 V 1500 V RDS(on) <7Ω <7Ω <7Ω TYPICAL RDS(on) = 5 Ω AV

PDF File Details

Part number:

STF4N150

Manufacturer:

STMicroelectronics ↗

File Size:

195.81kb

Download:

📄 Datasheet

Description:

Very high voltage powermesh mosfet. Using the well consolidated high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of Power MOSFETs w

STF4N150 Application

• Applications s SWITCH MODE POWER SUPPLIES Table 2: Order Codes SALES TYPE STF4N150 STP4N150 STW4N150 MARKING F4N150 P4N150 W4N150 PACKAGE TO-220FP
