STF4N52K3 - N-channel Power MOSFET

STMicroelectronics

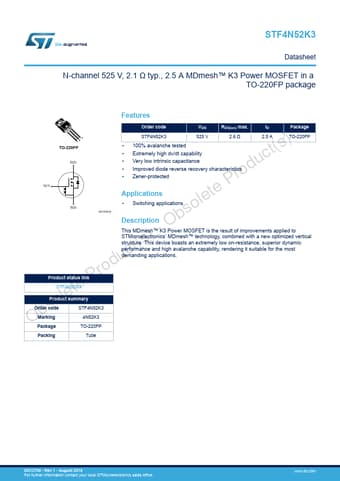

STF4N52K3 Datasheet Preview — Preview of STF4N52K3 PDF

Datasheet Details

Part number	STF4N52K3
Manufacturer	STMicroelectronics ↗
File Size	306.83 KB
Description	N-channel Power MOSFET
Datasheet	STF4N52K3-STMicroelectronics.pdf

STF4N52K3 Product details

Description

This MDmesh™ K3 Power MOSFET is the result of improvements applied to STMicroelectronics’ MDmesh™ technology, combined with a new optimized vertical structure.

Features

Order code VDS RDS(on) max. ID Package 3 ) 1 2 t(s TO-220FP c D(2) Produ G(1) ct(s) - Obsolete S(3) STF4N52K3 525 V 2.6 Ω.
100% avalanche tested.
Extremely high dv/dt capability.
Very low intrinsic capacitance.
Improved diode reverse recovery characteristics.
Zener-protected 2.5 A TO-220FP NG1D2S3Z.
