STGWT80V60DF Datasheet, Igbt, STMicroelectronics

STGWT80V60DF Features

  • Igbt
  • Maximum junction temperature: TJ = 175 °C
  • Tail-less switching off
  • VCE(sat) = 1.85 V (typ.) @ IC = 80 A
  • Tight parameters distribution
  • Sa

PDF File Details

Part number:

STGWT80V60DF

Manufacturer:

STMicroelectronics ↗

File Size:

1.56MB

Download:

📄 Datasheet

Description:

Igbt. This device is an IGBT developed using an advanced proprietary trench gate field stop structure. The device is part of the V series o

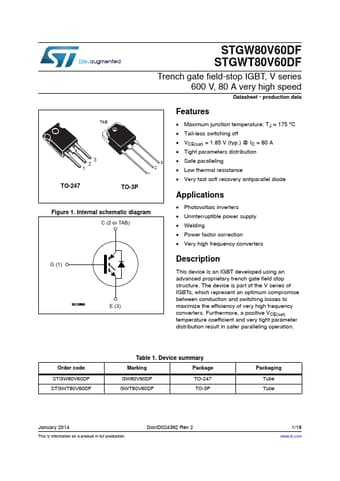

Datasheet Preview: STGWT80V60DF 📥 Download PDF (1.56MB)
Page 2 of STGWT80V60DF Page 3 of STGWT80V60DF

STGWT80V60DF Application

  • Applications
  • Photovoltaic inverters
  • Uninterruptible power supply
  • Welding
  • Power factor correction
  • V
