STI21N65M5

N-CHANNEL MOSFET

STMicroelectronics

STI21N65M5 Features

* Order codes VDSS @ TJmax RDS(on) max ID PW STB21N65M5 STF21N65M5 17 A 125 W 17 A(1) 30 W STI21N65M5 710 V < 0.179 Ω STP21N65M5 17 A 125 W STW21N65M5 1. Limited only by maximum temperature allowed

* Worldwide best RDS(on)

* area

* Higher VDSS rating

* High dv/dt capabilit

STI21N65M5 General Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbas.

STI21N65M5 Datasheet (865.80 KB)

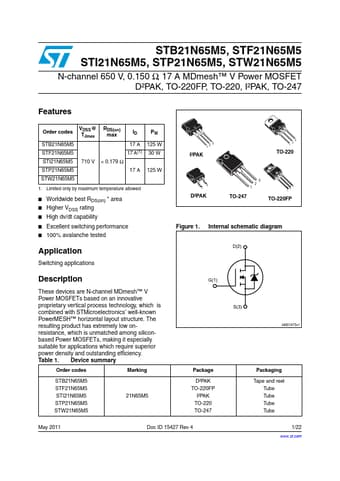

STI21N65M5 Datasheet Preview — Preview of STI21N65M5 PDF

Datasheet Details

Part number:

STI21N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

865.80 KB

Description:

N-channel mosfet.
STB21N65M5, STF21N65M5 STI21N65M5, STP21N65M5, STW21N65M5 N-channel 650 V, 0.150 Ω, 17 A MDmesh™ V Power MOSFET D²PAK, TO-220FP, TO-220, I²PAK, TO-247.
