STL4N10F7

N-CHANNEL POWER MOSFET

STMicroelectronics

STL4N10F7 Features

* Order code VDS STL4N10F7 100 V

* Excellent FoM (figure of merit)

* Low Crss/Ciss ration for EMI immunity

* High avalanche ruggedness RDS(on) max. 70 mΩ ID 4.5 A Applications

* Switching applications Description This N-channel Power MOSFET utilizes STripFET™ F

STL4N10F7 General Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Maturity status link STL4N10F7 Device summary Order .

STL4N10F7 Datasheet (617.37 KB)

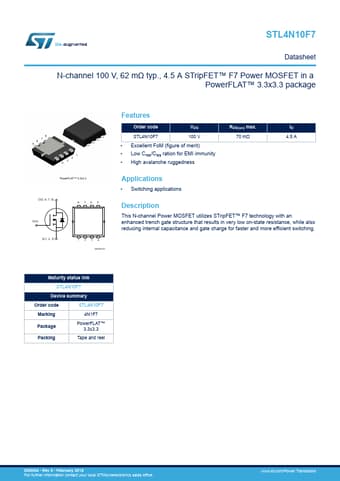

STL4N10F7 Datasheet Preview — Preview of STL4N10F7 PDF

Datasheet Details

Part number:

STL4N10F7

Manufacturer:

STMicroelectronics ↗

File Size:

617.37 KB

Description:

N-channel power mosfet.
STL4N10F7 Datasheet N-channel 100 V, 62 mΩ typ., 4.5 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 3.3x3.3 package D(5, 6, 7, 8) G(4) S(1, 2, 3) 8 76 .
