STL4N80K5 Datasheet - STMicroelectronics

STL4N80K5 N-CHANNEL POWER MOSFET

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in onresistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order code.

STL4N80K5 Features

* Order code STL4N80K5 VDS 800 V RDS(on)max. 2.5 Ω

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra low gate charge

* 100% avalanche tested

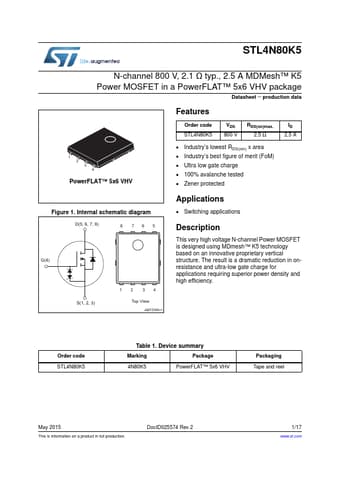

* Zener protected ID 2.5 A Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8
