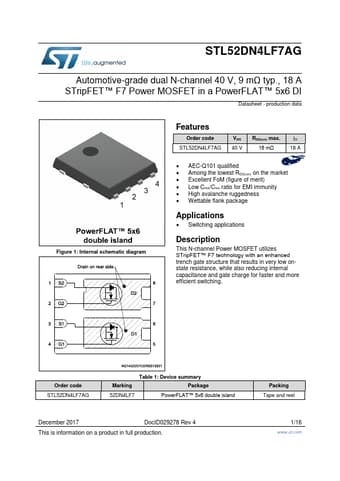

STL52DN4LF7AG Datasheet, Mosfet, STMicroelectronics

STL52DN4LF7AG Features

• Mosfet Order code STL52DN4LF7AG VDS 40 V RDS(on) max. 16 mΩ ID 18 A
• AEC-Q101 qualified
• Among the lowest RDS(on) on the market
• Excellent FoM (figure of merit)

PDF File Details

Part number:

STL52DN4LF7AG

Manufacturer:

STMicroelectronics ↗

File Size:

878.01kb

Download:

📄 Datasheet

Description:

Dual n-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate

STL52DN4LF7AG Application

• Applications
• Switching applications Description This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate
