N-channel power mosfet.

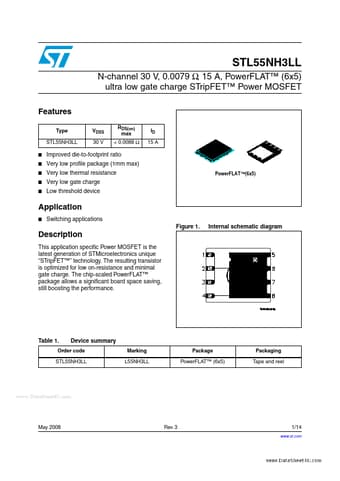

STL55NH3LL, N-channel Power MOSFET

This application specific Power MOSFET is the latest generation of STMicroelectronics unique “STripFET™” technology.

The resulting transistor is optimized for low on-resistance and minimal gate charge.

The chip-scaled PowerFLAT™ package allows a significant board space saving, still boosting the per

STL55NH3LL Features

* Type STL55NH3LL

* VDSS 30 V RDS(on) max < 0.0088 Ω ID 15 A Improved die-to-footprint ratio Very low profile package (1mm max) Very low thermal resistance Very low gate charge Low threshold device PowerFLAT™(6x5) Application

* Switching applications Figure 1. Int
