STL57N65M5 Datasheet, Mosfet, STMicroelectronics

STL57N65M5 Features

  • Mosfet Order code STL57N65M5 VDS @ TJmax 710 V RDS(on) max. 0.069Ω ID 22.5 A
  • Extremely low RDS(on)
  • Low gate charge and input capacitance
  • Excellent switching

PDF File Details

Part number:

STL57N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

798.83kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET based on the MDmesh™ M5 innovative vertical process technology combined with the wellknown P

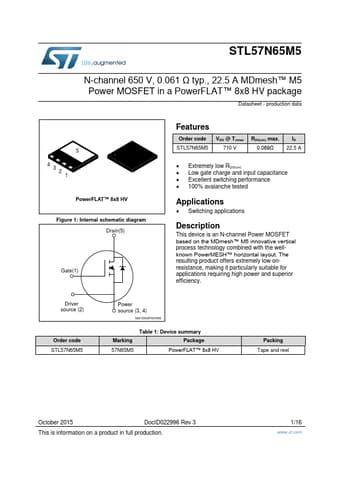

Datasheet Preview: STL57N65M5 📥 Download PDF (798.83kb)
Page 2 of STL57N65M5 Page 3 of STL57N65M5

STL57N65M5 Application

  • Applications
  • Switching applications Description This device is an N-channel Power MOSFET based on the MDmesh™ M5 innovative vertical proce
