STL56N3LLH5

N-channel Power MOSFET

STMicroelectronics

STL56N3LLH5 Features

* PowerFLAT 5x6 Order code VDS RDS(on) max. ID STL56N3LLH5 30 V 9 mΩ 56 A

* Low on-resistance RDS(on)

* High avalanche ruggedness

* Low gate drive power loss D(5, 6, 7, 8) 8 76 5 Applications

* Switching applications G(4) Description S(1, 2, 3) 12 34 To

STL56N3LLH5 General Description

S(1, 2, 3) 12 34 Top View AM15540v2 This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET H5 technology. The device has been optimized to achieve very low onstate resistance, contributing to a FoM that is among the best in its class. Product status link STL56N3LLH.

STL56N3LLH5 Datasheet (679.55 KB)

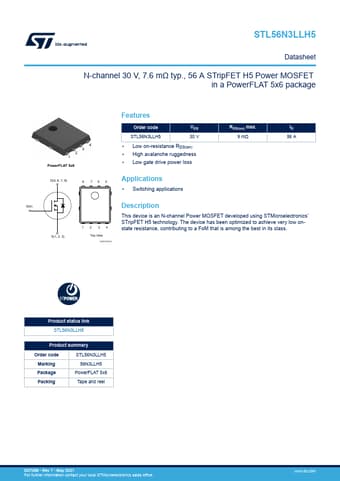

STL56N3LLH5 Datasheet Preview — Preview of STL56N3LLH5 PDF

Datasheet Details

Part number:

STL56N3LLH5

Manufacturer:

STMicroelectronics ↗

File Size:

679.55 KB

Description:

N-channel power mosfet.
