STLD200N4F6AG N-channel Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

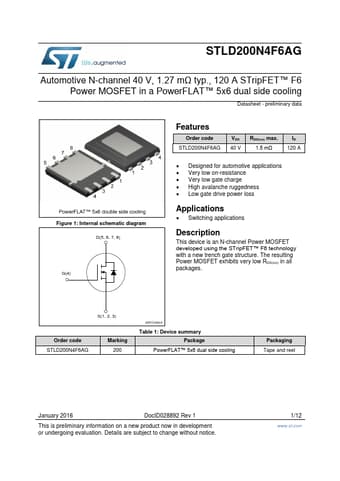

STLD200N4F6AG Automotive N-channel 40 V, 1.27 mΩ typ., 120 A STripFET™ F6 Power MOSFET in a PowerFLAT™ 5x6 dual side cooling Datasheet - preliminary .
This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology with a new trench gate structure.

📥 Download Datasheet

Preview of STLD200N4F6AG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Order code STLD200N4F6AG VDS 40 V RDS(on) max. 1.5 mΩ ID 120 A

Applications

* Very low on-resistance
* Very low gate charge
* High avalanche ruggedness
* Low gate drive power loss Applications
