STLD40D Datasheet, Supply, ST Microelectronics

STLD40D Features

  • Supply
  • Inductor switches boost controller
  • PFM mode control
  • High efficiency over wide range of input voltage from 3.0 V to 5.5 V
  • Over voltage protection

PDF File Details

Part number:

STLD40D

Manufacturer:

STMicroelectronics ↗

File Size:

312.99kb

Download:

📄 Datasheet

Description:

White led power supply. STLD40D is a boost converter that operates from 3.0 V to 5.5 V. It can provide an output voltage as high as 37 V and can drive u

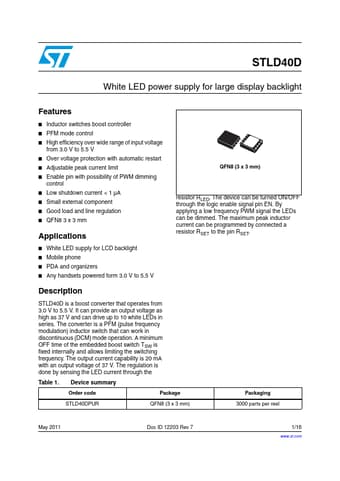

Datasheet Preview: STLD40D 📥 Download PDF (312.99kb)
Page 2 of STLD40D Page 3 of STLD40D

STLD40D Application

  • Applications
  • White LED supply for LCD backlight
  • Mobile phone
  • PDA and organizers
  • Any handsets powered form 3.
