STLD110N10F7 Features

  • Mosfet Order code VDS RDS(on) max. STLD110N10F7 100 V 6 mΩ
  • Among the lowest RDS(on) on the market
  • Excellent FoM (figure of merit)
  • Low Crss/Ciss ratio for E

PDF File Details

Part number:

STLD110N10F7

Manufacturer:

STMicroelectronics ↗

File Size:

1.89MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state

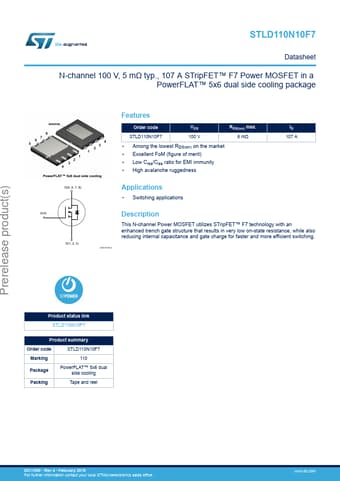

Datasheet Preview: STLD110N10F7 📥 Download PDF (1.89MB)
Page 2 of STLD110N10F7 Page 3 of STLD110N10F7

STLD110N10F7 Application

  • Applications
  • Switching applications G(4) S(1, 2, 3) AM15540v4 Description This N-channel Power MOSFET utilizes STripFET™ F7 technology
