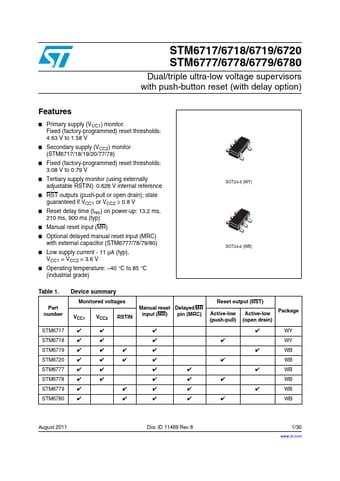

STM6777, STM6717 - Dual/triple ultra-low voltage supervisor

STMicroelectronics

Datasheet Details

Part number	STM6777, STM6717
Manufacturer	STMicroelectronics
File Size	637.63 KB
Description	Dual/triple ultra-low voltage supervisor
Datasheet	STM6717_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM6777, STM6717. Please refer to the document for exact specifications by model.

. 7 1.1.1 Active-low, push-pull reset output (RST) - STM6718/20/78/80 . . .

Primary supply (VCC1) monitor. Fixed (factory-programmed) reset thresholds: 4.63 V to 1.58 V.
Secondary supply (VCC2) monitor (STM6717/18/19/20/77/78).
Fixed (factory-programmed) reset thresholds: 3.08 V to 0.79 V.
Tertiary supply monitor (using externally adjustable RSTIN): 0.626 V internal reference.
RST outputs (push-pull or open drain); state guaranteed if VCC1 or VCC2 ≥ 0.8 V.
Reset delay time (trec) on power-up: 13.2 ms, 210 ms, 900 ms (typ).
Manual rese.
