STM6780, STM6717 Dual/triple ultra-low voltage supervisor

STM6780 Description

STM6717/6718/6719/6720 STM6777/6778/6779/6780 Dual/triple ultra-low voltage supervisors with push-button reset (with delay option) .

STM6780 Features

* Primary supply (VCC1) monitor. Fixed (factory-programmed) reset thresholds: 4.63 V to 1.58 V
* Secondary supply (VCC2) monitor (STM6717/18/19/20/77/78)
* Fixed (factory-programmed) reset thresholds: 3.08 V to 0.79 V
* Tertiary supply monitor (using externally adjustable RSTIN): 0.6

STM6780 Applications

* information
* . . . 10 3 Typical operating characteristics
* . . . . 11 4 Maximum rating
* . . . . 17 5 DC and AC parame

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM6780, STM6717. Please refer to the document for exact specifications by model.

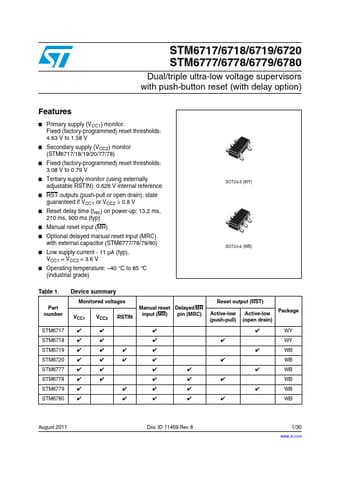

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM6780, STM6717
Manufacturer
STMicroelectronics ↗
File Size
637.63 KB
Datasheet
STM6717_STMicroelectronics.pdf
Description
Dual/triple ultra-low voltage supervisor
Note
This datasheet PDF includes multiple part numbers: STM6780, STM6717.
Please refer to the document for exact specifications by model.
