STP27N60M2-EP N-channel Power MOSFET

STP27N60M2-EP Description

STP27N60M2-EP, STW27N60M2-EP N-channel 600 V, 0.150 Ω typ., 20 A MDmesh™ M2 EP Power MOSFETs in TO-220 and TO-247 packages Datasheet - production data.
These devices are N-channel Power MOSFETs developed using MDmesh™ M2 EP enhanced performance technology.

STP27N60M2-EP Features

* Order code V DS RDS(on) max ID STP27N60M2-EP 600 V 0.163 Ω 20 A STW27N60M2-EP 600 V 0.163 Ω 20 A 3 2 1 TO-220 3 2 1 TO-247
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* Very low turn-off switching losses
* 100% avalanche tested
* Zener-pr

STP27N60M2-EP Applications

* Switching applications

📥 Download Datasheet

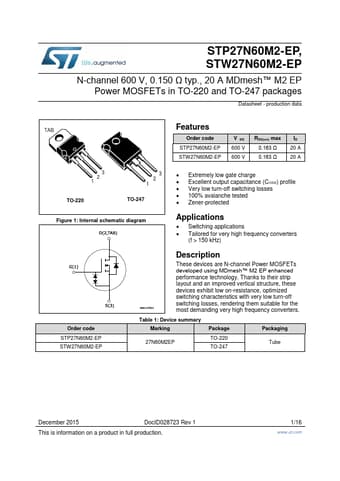

Preview of STP27N60M2-EP PDF
datasheet Preview Page 2 datasheet Preview Page 3
