STP3NK80Z - N-CHANNEL Power MOSFET

STMicroelectronics

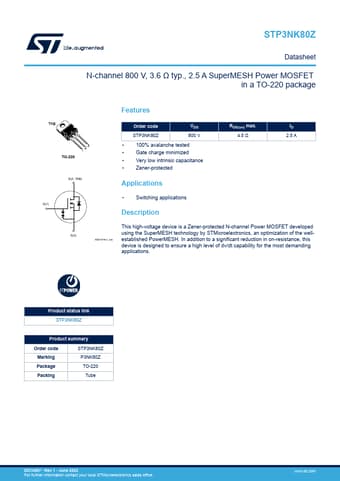

STP3NK80Z Datasheet Preview — Preview of STP3NK80Z PDF

Datasheet Details

Part number	STP3NK80Z
Manufacturer	STMicroelectronics ↗
File Size	765.54 KB
Description	N-CHANNEL Power MOSFET
Datasheet	STP3NK80Z_STMicroelectronics.pdf

STP3NK80Z Product details

Description

This high-voltage device is a Zener-protected N-channel Power MOSFET developed S(3) using the SuperMESH technology by STMicroelectronics, an optimization of the well- AM01476v1_tab established PowerMESH.In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.Product status link STP3NK80Z Product summary Order code STP3NK80Z Marking P3NK80Z Package TO-220 Packing Tube DS14367

Features

TAB TO-220 1 23 D(2, TAB) Order code VDS STP3NK80Z 800 V.
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitance.
Zener-protected.
