STP3NK60ZFP, STP3NK60Z - N-CHANNEL Power MOSFET

ST Microelectronics

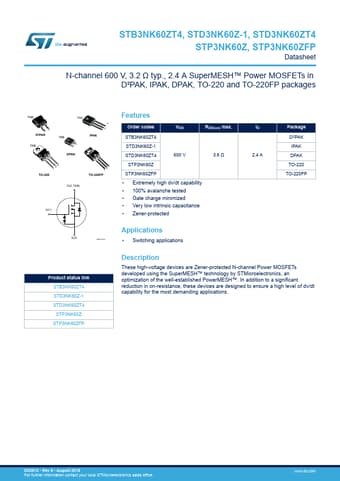

STP3NK60ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP3NK60ZFP, STP3NK60Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STP3NK60ZFP, STP3NK60Z
Manufacturer	STMicroelectronics ↗
File Size	932.16 KB
Description	N-CHANNEL Power MOSFET
Datasheet	STP3NK60Z_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STP3NK60ZFP, STP3NK60Z. Please refer to the document for exact specifications by model.

STP3NK60ZFP Product details

Description

These high-voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology by STMicroelectronics, an optimization of the well-established PowerMESH™.

Features

Order codes VDS RDS(on) max. STB3NK60ZT4 STD3NK60Z-1 STD3NK60ZT4 600 V 3.6 Ω STP3NK60Z STP3NK60ZFP.
Extremely high dv/dt capability.
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitance.
Zener-protected ID 2.4 A Package D2PAK IPAK DPAK TO-220 TO-220FP.
