STP3NK90ZFP - N-Channel Power MOSFET

STMicroelectronics

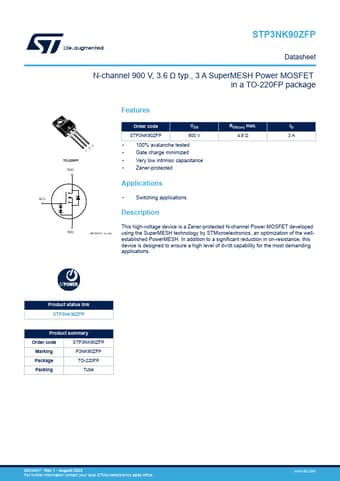

STP3NK90ZFP Datasheet Preview — Preview of STP3NK90ZFP PDF

Datasheet Details

Part number	STP3NK90ZFP
Manufacturer	STMicroelectronics ↗
File Size	300.61 KB
Description	N-Channel Power MOSFET
Datasheet	STP3NK90ZFP-STMicroelectronics.pdf

STP3NK90ZFP Product details

Description

This high-voltage device is a Zener-protected N-channel Power MOSFET developed S(3) AM15572v1_no_tab using the SuperMESH technology by STMicroelectronics, an optimization of the well- established PowerMESH.In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.Product status link STP3NK90ZFP Product summary Order code STP3NK90ZFP Marking P3NK90ZFP Package TO-220FP Packing Tu

Features

Order code VDS RDS(on) max. ID STP3NK90ZFP 900 V 4.8 Ω 3A 3 2 1 TO-220FP D(2).
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitance.
Zener-protected.
