STP3NK90Z - N-Channel MOSFET

STMicroelectronics

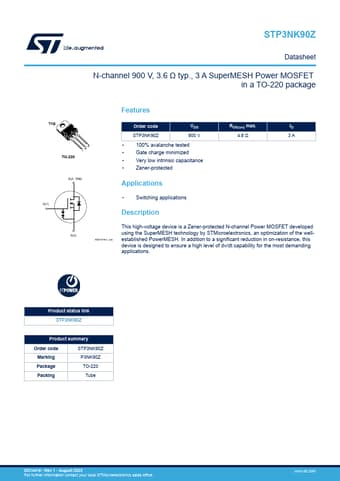

STP3NK90Z Datasheet Preview — Preview of STP3NK90Z PDF

Datasheet Details

Part number	STP3NK90Z
Manufacturer	STMicroelectronics ↗
File Size	595.26 KB
Description	N-Channel MOSFET
Datasheet	STP3NK90Z_STMicroelectronics.pdf

STP3NK90Z Product details

Description

This high-voltage device is a Zener-protected N-channel Power MOSFET developed S(3) using the SuperMESH technology by STMicroelectronics, an optimization of the well- AM01476v1_tab established PowerMESH.In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.Product status link STP3NK90Z Product summary Order code STP3NK90Z Marking P3NK90Z Package TO-220 Packing Tube DS14416

Features

TAB TO-220 1 23 Order code VDS RDS(on) max. ID STP3NK90Z 900 V 4.8 Ω 3A.
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitance.
Zener-protected D(2, TAB).
