STP80NF10FP Datasheet, mosfet equivalent, STMicroelectronics

STP80NF10FP Features

• Mosfet Type STP80NF10FP VDSS 100V RDS(on) <0.015Ω
• Exceptional dv/dt capability
• 100% Avalanche tested
• Application oriented characterization ID(1) 38A Descrip

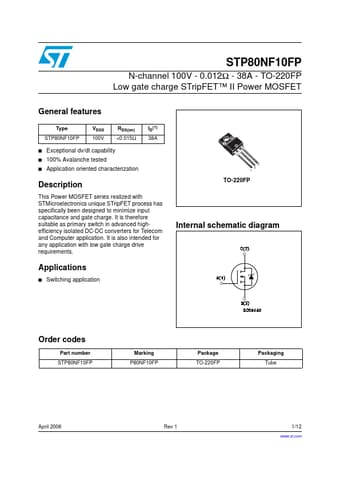

PDF File Details

Part number:

STP80NF10FP

Manufacturer:

STMicroelectronics (https://www.st.com/)

File Size:

204.79kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input ca

STP80NF10FP Application

• Applications
• Switching application 3 2 1 TO-220FP Internal schematic diagram Order codes Part number STP80NF10FP Marking P80NF10FP Pac
