STP80N340K6 Datasheet - STMicroelectronics

N-channel Power MOSFET

STP80N340K6 Features

* Order code VDS RDS(on) max. ID STP80N340K6 800 V 340 mĪ© 12 A

* Worldwide best RDS(on) x area

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Flyback converter

* A

STP80N340K6 General Description

S(3) AM01476v1_tab This very high voltage N-channel Power MOSFET is designed using the ultimate MDmesh K6 technology based on 20 years STMicroelectronics experience on super junction technology. The result is the best-in-class on-resistance per area and gate charge for applications requiring superio.

STP80N340K6 Datasheet (288.28 KB)

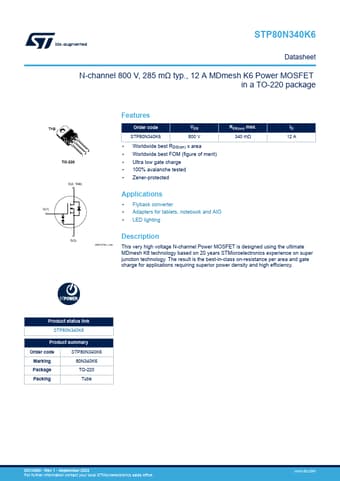

Preview of STP80N340K6 PDF

Datasheet Details
