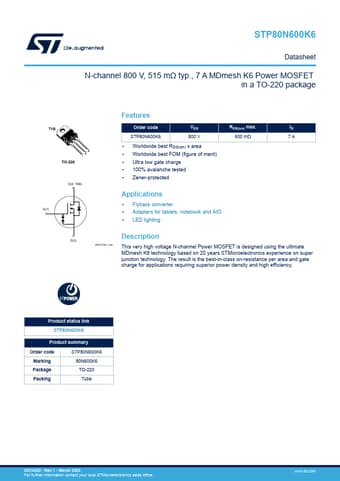

STP80N600K6 Datasheet, Mosfet, STMicroelectronics

STP80N600K6 Features

• Mosfet TAB Order code VDS RDS(on) max. ID STP80N600K6 800 V 600 mΩ 7A TO-220 1 23 D(2, TAB)
• Worldwide best RDS(on) x area
• Worldwide best FOM (figure of merit)

PDF File Details

Part number:

STP80N600K6

Manufacturer:

STMicroelectronics ↗

File Size:

273.23kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. S(3) AM01476v1_tab This very high voltage N-channel Power MOSFET is designed using the ultimate MDmesh K6 technology based on 20 year

STP80N600K6 Application

• Applications
• Flyback converter G(1)
• Adapters for tablets, notebook and AIO
• LED lighting Description S(3) AM01476v
