STP80N450K6 - N-channel Power MOSFET

STMicroelectronics

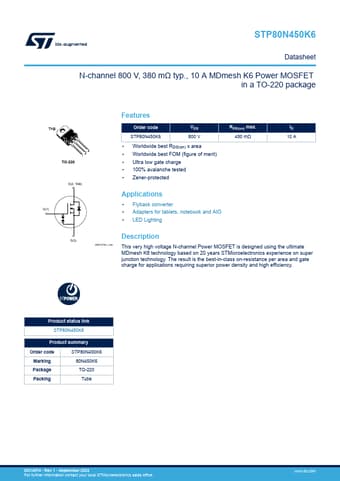

STP80N450K6 Datasheet Preview — Preview of STP80N450K6 PDF

Datasheet Details

Part number	STP80N450K6
Manufacturer	STMicroelectronics ↗
File Size	265.41 KB
Description	N-channel Power MOSFET
Datasheet	STP80N450K6-STMicroelectronics.pdf

STP80N450K6 Product details

Description

S(3) AM01476v1_tab This very high voltage N-channel Power MOSFET is designed using the ultimate MDmesh K6 technology based on 20 years STMicroelectronics experience on super junction technology.The result is the best-in-class on-resistance per area and gate charge for applications requiring superior power density and high efficiency.Product status link STP80N450K6 Product summary Order code STP80N450K6 Marking 80N450K6 Package TO-220 Packing Tube DS14074 - Rev 1 - September 2022 For

Features

Order code VDS RDS(on) max. ID STP80N450K6 800 V 450 mΩ 10 A.
Worldwide best RDS(on) x area.
Worldwide best FOM (figure of merit).
Ultra low gate charge.
100% avalanche tested.
Zener-protected.
