STP8NM60D

N-CHANNEL Power MOSFET

STP8NM60D Features

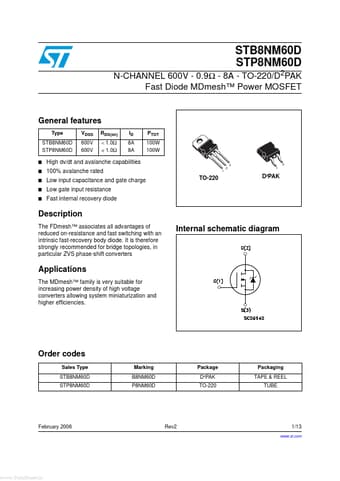

* Type STB8NM60D STP8NM60D

* VDSS 600V 600V RDS(on) < 1.0Ω < 1.0Ω ID 8A 8A PTOT 100W 100W 3 1 2 High dv/dt and avalanche capabilities 100% avalanche rated Low input capacitance and gate charge Low gate input resistance Fast internal recovery diode TO-220 3 1 D²PAK D

STP8NM60D General Description

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters Internal schematic diagram Applications The MDmesh™ family is very suit.

STP8NM60D Datasheet (755.05 KB)

Preview of STP8NM60D PDF

Datasheet Details

Part number:

STP8NM60D

Manufacturer:

STMicroelectronics ↗

File Size:

755.05 KB

Description:

N-channel power mosfet.
