STP90N4F3 Datasheet, Mosfet, STMicroelectronics

STP90N4F3 Features

  • Mosfet Type STD90N4F3 STI90N4F3 STP90N4F3 STU90N4F3
  • VDSS 40 V 40 V 40 V 40 V RDS(on) max < 6.5 mΩ < 6.5 mΩ < 6.5 mΩ < 6.5 mΩ ID 80 A 80 A 80 A 80 A Pw 1 3 3 2 1 110

PDF File Details

Part number:

STP90N4F3

Manufacturer:

STMicroelectronics ↗

File Size:

770.85kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This n-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronics unique “single feature size“ strip-based

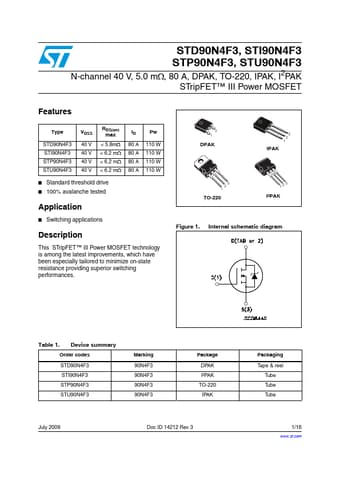

Datasheet Preview: STP90N4F3 📥 Download PDF (770.85kb)
Page 2 of STP90N4F3 Page 3 of STP90N4F3

STP90N4F3 Application

  • Applications Figure 1. Internal schematic diagram Description This n-channel enhancement mode Power MOSFET is the latest refinement of STMicroelect
