STP95N2LH5 - N-channel Power MOSFET

STMicroelectronics

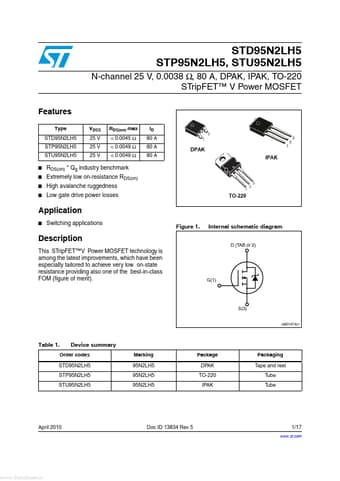

STP95N2LH5 Datasheet Preview — Preview of STP95N2LH5 PDF

Datasheet Details

Part number	STP95N2LH5
Manufacturer	STMicroelectronics ↗
File Size	641.23 KB
Description	N-channel Power MOSFET
Datasheet	STP95N2LH5_STMicroelectronics.pdf

STP95N2LH5 Product details

Description

This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class FOM (figure of merit).

Features

Type STD95N2LH5 STP95N2LH5 STU95N2LH5.
VDSS 25 V 25 V 25 V RDS(on) max < 0.0045 Ω < 0.0049 Ω < 0.0049 Ω ID 3 80 A 80 A 80 A 1 3 2 1 DPAK IPAK RDS(on).
Qg industry benchmark Extremely low on-resistance RDS(on) High avalanche ruggedness Low gate drive power losses 3 1 2 TO-220.
