STP90NF03L Datasheet, Mosfet, STMicroelectronics

STP90NF03L Features

• Mosfet Type STP90NF03L STP90NF03L-1
• VDSS (@Tjmax) 30V 30V RDS(on) <0.0065Ω <0.0065Ω ID 90A 90A 3 1 2 Optimal RDS(on) x Qg trade-off Conduction losses reduced

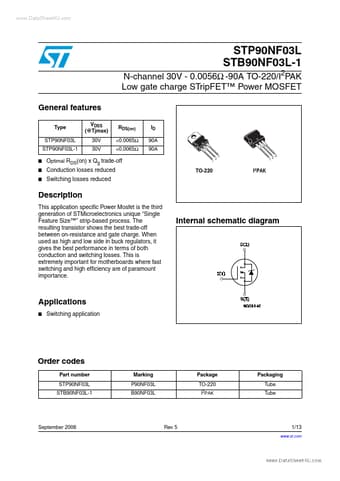

PDF File Details

Part number:

STP90NF03L

Manufacturer:

STMicroelectronics ↗

File Size:

284.99kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This application specific Power Mosfet is the third generation of STMicroelectronics unique “Single Feature Size™” strip-based proces

STP90NF03L Application

• Applications
• Switching application Order codes Part number STP90NF03L STB90NF03L-1 Marking P90NF03L B90NF03L Package TO-220 I2PAK Packag
