STP9N60M2

N-channel Power MOSFET

STP9N60M2 Features

* Order codes VDS @ TJmax RDS(on) max. ID STD9N60M2 STP9N60M2 650 V 0.78 Ω 5.5 A STU9N60M2

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected PTOT 60 W Package DPAK TO-220 IPAK Applications

STP9N60M2 General Description

These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high-efficiency converter.

STP9N60M2 Datasheet (765.83 KB)

Preview of STP9N60M2 PDF

Datasheet Details

Part number:

STP9N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

765.83 KB

Description:

N-channel power mosfet.

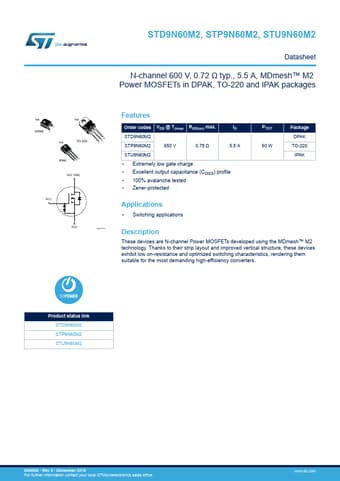

STD9N60M2, STP9N60M2, STU9N60M2 Datasheet N-channel 600 V, 0.72 Ω typ., 5.5 A, MDmesh™ M2 Power MOSFETs in DPAK, TO-220 and IPAK packages TAB DPAK .
