STP9NK80Z N-channel Power MOSFET

STMicroelectronics

Description

STP9NK80Z STF9NK80Z N-CHANNEL 800V -0.9Ω - 7.5A TO-220/TO-220FP Zener-Protected SuperMESH™MOSFET Table 1: General .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

📥 Download Datasheet

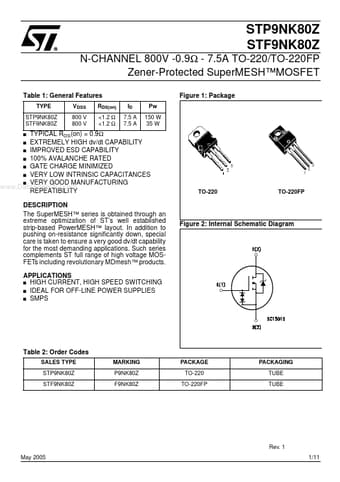

STP9NK80Z Datasheet Preview — Preview of STP9NK80Z PDF

Datasheet Specifications

Part number: STP9NK80Z
Manufacturer: STMicroelectronics ↗
File Size: 354.08 KB
Datasheet: STP9NK80Z_STMicroelectronics.pdf
Description: N-channel Power MOSFET

Features

* TYPE STP9NK80Z STF9NK80Z s s Figure 1: Package ID 7.5 A 7.5 A Pw 150 W 35 W VDSS 800 V 800 V RDS(on)

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES s SMPS 3 1 2 TO-220 TO-220FP Figure 2: Internal Schematic Diagram Table 2: Order Codes SALES TYPE STP9NK
