STP9NK50Z Datasheet - ST Microelectronics

STP9NK50Z N-CHANNEL Power MOSFET

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements .

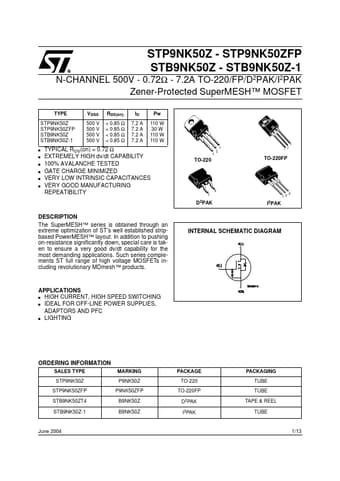

STP9NK50Z - STP9NK50ZFP STB9NK50Z - STB9NK50Z-1 N-CHANNEL 500V - 0.72Ω - 7.2A TO-220/FP/D2PAK/I2PAK Zener-Protected SuperMESH™ MOSFET TYPE VDSS RDS(on) ID Pw STP9NK50Z STP9NK50ZFP STB9NK50Z STB9NK50Z-1 500 V 500 V 500 V 500 V < 0.85 Ω < 0.85 Ω < 0.85 Ω < 0.85 Ω 7.2 A 7.2 A 7.2 A 7.2 A 110 W 30 W 110 W 110 W s TYPICAL RDS(on) = 0.72 Ω s EXTREMELY HIGH dv/dt CAPABILITY s 100% AVALANCHE TESTED s GATE CHARGE MINIMIZED s VERY LOW INTRINSIC CAPACITANCES s VERY GOOD MANUFACTURING REPEATIBILIT.

STP9NK50Z Datasheet (363.31 KB)
