STP9NK60Z Datasheet, Mosfet, ST Microelectronics

STP9NK60Z Features

• Mosfet Order codes STB9NK60ZT4 STP9NK60Z STP9NK60ZFP VDS RDS(on) max ID PTOT 600 V 125 W 0.95 Ω 7 A 30 W
• Extremely high dv/dt capability
• Improved ESD capability

PDF File Details

Part number:

STP9NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

363.15kb

Download:

📄 Datasheet

Description:

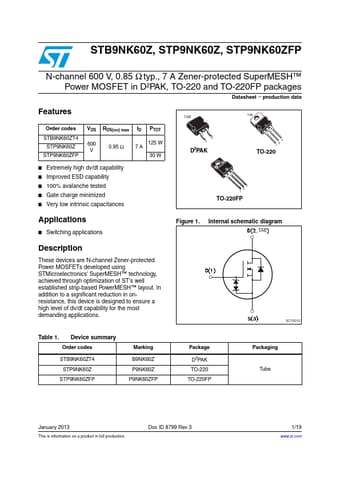

N-channel power mosfet. These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through

STP9NK60Z Application

• Applications
• Switching applications Figure 1. Internal schematic diagram , TAB Description These devices are N-channel Zener-protected P
