STP9NK65Z - N-CHANNEL Power MOSFET

ST Microelectronics

📥 Download Datasheet

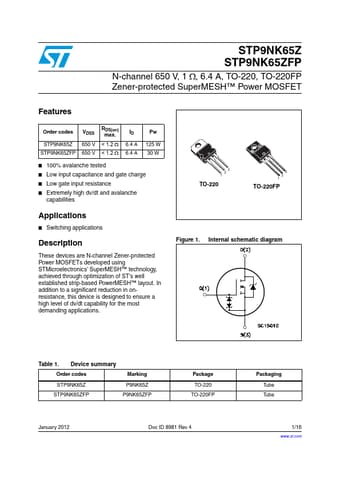

STP9NK65Z Datasheet Preview — Preview of STP9NK65Z PDF

Datasheet Details

Part number: STP9NK65Z
Manufacturer: STMicroelectronics ↗
File Size: 354.46 KB
Datasheet: STP9NK65Z_STMicroelectronics.pdf
Description: N-CHANNEL Power MOSFET

STP9NK65Z Product details

Description

These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's well established strip-based PowerMESH™ layout.

Features

Order codes STP9NK65Z STP9NK65ZFP VDSS 650 V 650 V RDS(on) max. < 1.2 Ω < 1.2 Ω ID 6.4 A 6.4 A Pw 125 W 30 W.
100% avalanche tested.
Low input capacitance and gate charge.
Low gate input resistance.
Extremely high dv/dt and avalanche capabilities.
