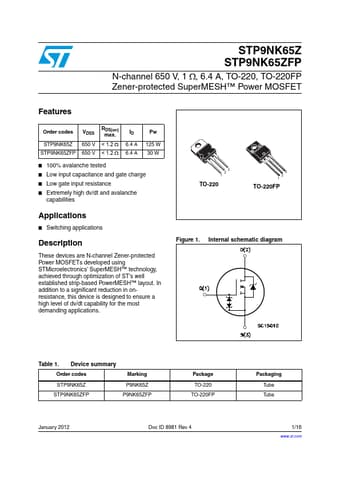

STP9NK65ZFP Datasheet, Mosfet, ST Microelectronics

STP9NK65ZFP Features

• Mosfet Order codes STP9NK65Z STP9NK65ZFP VDSS 650 V 650 V RDS(on) max. < 1.2 Ω < 1.2 Ω ID 6.4 A 6.4 A Pw 125 W 30 W
• 100% avalanche tested
• Low input capacitance and ga

PDF File Details

Part number:

STP9NK65ZFP

Manufacturer:

STMicroelectronics ↗

File Size:

354.46kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through

STP9NK65ZFP Application

• Applications
• Switching applications Description These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectron
