STP9N65M2 Datasheet - STMicroelectronics

N-channel Power MOSFET

STP9N65M2 Features

* Order codes STD9N65M2 STF9N65M2 STP9N65M2 STU9N65M2 VDS RDS(on) max ID 650 V 0.9 Ω 5A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Figure 1. Internal schematic diagram , TAB Applications

STP9N65M2 General Description

These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology. Thanks to the strip layout associated to an improved vertical structure, the devices exhibit both low on-resistance and optimized switching characteristics. They are therefore suitable for the most demanding high ef.

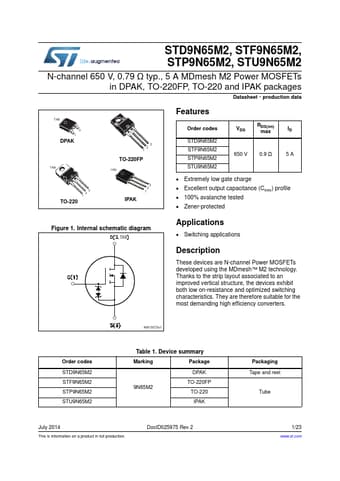

STP9N65M2 Datasheet (1.27 MB)

STP9N65M2 Datasheet Preview — Preview of STP9N65M2 PDF

Datasheet Details

Part number:

STP9N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

1.27 MB

Description:

N-channel power mosfet.
STD9N65M2, STF9N65M2, STP9N65M2, STU9N65M2 N-channel 650 V, 0.79 Ω typ., 5 A MDmesh M2 Power MOSFETs in DPAK, TO-220FP, TO-220 and IPAK packages Datas.
