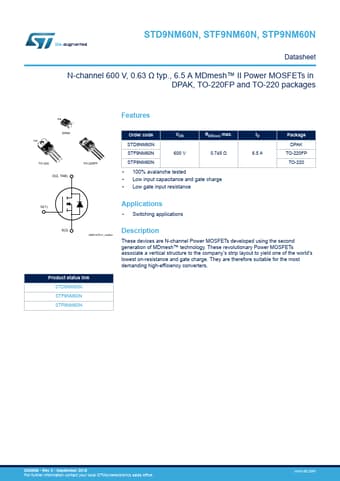

STP9NM60N Datasheet, Mosfet, STMicroelectronics

STP9NM60N Features

• Mosfet Order codes STD9NM60N STF9NM60N STP9NM60N VDSS (@Tjmax) RDS(on) max. 650 V < 0.745 Ω ID 6.5 A
• 100% avalanche tested
• Low input capacitance and gate charge

PDF File Details

Part number:

STP9NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

551.96kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This series of devices is realized with the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new

STP9NM60N Application

• Applications Description This series of devices is realized with the second generation of MDmesh™ technology. This revolutionary Power MOSFET assoc
