STP9NK50ZFP, STP9NK50Z Datasheet - ST Microelectronics

STP9NK50ZFP - N-CHANNEL Power MOSFET

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.

Such series complements

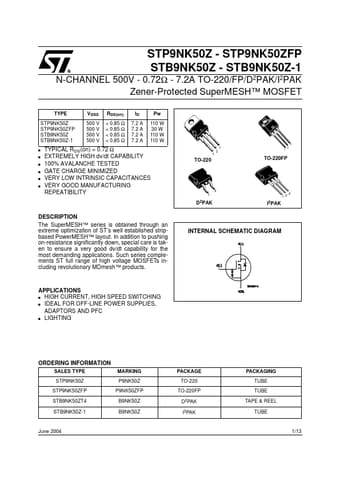

STP9NK50Z - STP9NK50ZFP STB9NK50Z - STB9NK50Z-1 N-CHANNEL 500V - 0.72Ω - 7.2A TO-220/FP/D2PAK/I2PAK Zener-Protected SuperMESH™ MOSFET TYPE VDSS RDS(on) ID Pw STP9NK50Z STP9NK50ZFP STB9NK50Z STB9NK50Z-1 500 V 500 V 500 V 500 V < 0.85 Ω < 0.85 Ω < 0.85 Ω < 0.85 Ω 7.2 A 7.2 A 7.2 A 7.2 A 110 W 30 W 110 W 110 W s TYPICAL RDS(on) = 0.72 Ω s EXTREMELY HIGH dv/dt CAPABILITY s 100% AVALANCHE TESTED s GATE CHARGE MINIMIZED s VERY LOW INTRINSIC CAPACITANCES s VERY GOOD MANUFACTURING REPEATIBILIT

STP9NK50Z_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP9NK50ZFP, STP9NK50Z. Please refer to the document for exact specifications by model.
STP9NK50ZFP Datasheet Preview Page 2 STP9NK50ZFP Datasheet Preview Page 3

Datasheet Details

Part number:

STP9NK50ZFP, STP9NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

363.31 KB

Description:

N-channel power mosfet.

Note:

This datasheet PDF includes multiple part numbers: STP9NK50ZFP, STP9NK50Z.
Please refer to the document for exact specifications by model.
