STPS10M120SF

120V power Schottky rectifier

STPS10M120SF Features

* Low profile design

* package height of 1.1 mm typ.

* Wettable flanks for automatic visual inspection

* Low forward voltage drop

* Avalanche capability

* ECOPACK®2 compliant Applications

* Switching diode

* DC / DC converter

STPS10M120SF General Description

This high voltage Schottky barrier rectifier has been optimized for use in high frequency miniature DC/DC converters, reverse battery protection, battery chargers and adaptors. Packaged in PSMC (TO-277A), the STPS10M120SF provides a high level of performance in a compact and flat package which can w.

STPS10M120SF Datasheet (307.86 KB)

Preview of STPS10M120SF PDF

Datasheet Details

Part number:

STPS10M120SF

Manufacturer:

STMicroelectronics ↗

File Size:

307.86 KB

Description:

120v power schottky rectifier.
STPS10M120SF Datasheet 120 V power Schottky rectifier Product status link STPS10M120SF Product summary Symbol Value IF(AV) 10 A VRRM 120 V Tj.

📁 Related Datasheet

STPS10M60SF 60V power Schottky rectifier (STMicroelectronics)

STPS10M80C Power Schottky rectifier (STMicroelectronics)

STPS10M80CFP Power Schottky rectifier (STMicroelectronics)

STPS10M80CG Power Schottky rectifier (STMicroelectronics)

STPS10M80CR Power Schottky rectifier (STMicroelectronics)

STPS10M80CT Power Schottky rectifier (STMicroelectronics)

STPS10120C Power Schottky rectifier (STMicroelectronics)

STPS10150C High voltage power Schottky rectifier (STMicroelectronics)

STPS10150CFP High voltage power Schottky rectifier (STMicroelectronics)

STPS10150CG High voltage power Schottky rectifier (STMicroelectronics)

TAGS

STPS10M120SF 120V power Schottky rectifier STMicroelectronics

Image Gallery

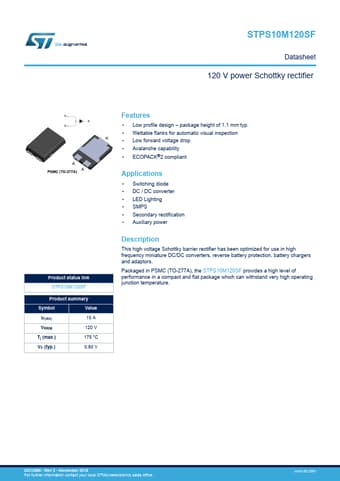

STPS10M120SF Datasheet Preview Page 2 STPS10M120SF Datasheet Preview Page 3
