Description

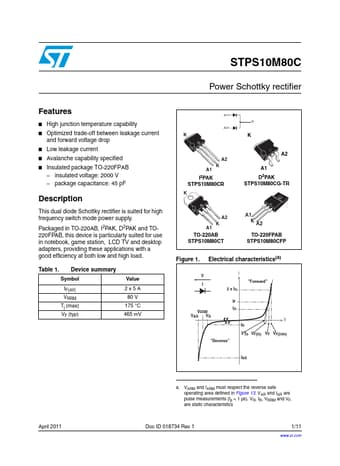

STPS10M80C Power Schottky rectifier .
This dual diode Schottky rectifier is suited for high frequency switch mode power supply.
Features
* High junction temperature capability
* Optimized trade-off between leakage current
and forward voltage drop
* Low leakage current
* Avalanche capability specified
* Insulated package TO-220FPAB
* insulated voltage: 2000 V
* package capacitance: 45 pF
Descriptio
Applications
* with a good efficiency at both low and high load. Table 1. Device summary
Symbol
IF(AV) VRRM Tj (max) VF (typ)
Value 2x5A
80 V 175 °C 465 mV
A1
A2
K
A2 K A1 I2PAK STPS10M80CR K
K
K
A2
A1 D2PAK STPS10M80CG-TR
A2 K A1
TO-220AB STPS10M80CT
A1 K A2
TO-220FPAB STPS10M80CFP
Figure 1. Electrical cha
