STPS10M80CFP, STPS10M80C Power Schottky rectifier

STPS10M80CFP Description

STPS10M80C Power Schottky rectifier .
This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

STPS10M80CFP Features

* High junction temperature capability
* Optimized trade-off between leakage current and forward voltage drop
* Low leakage current
* Avalanche capability specified
* Insulated package TO-220FPAB
* insulated voltage: 2000 V
* package capacitance: 45 pF Descriptio

STPS10M80CFP Applications

* with a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF (typ) Value 2x5A 80 V 175 °C 465 mV A1 A2 K A2 K A1 I2PAK STPS10M80CR K K K A2 A1 D2PAK STPS10M80CG-TR A2 K A1 TO-220AB STPS10M80CT A1 K A2 TO-220FPAB STPS10M80CFP Figure 1. Electrical cha

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS10M80CFP, STPS10M80C. Please refer to the document for exact specifications by model.

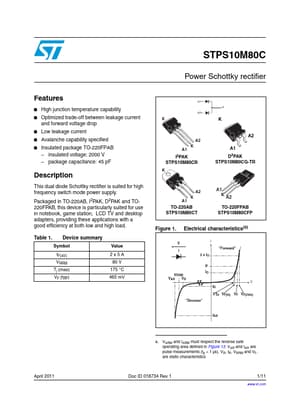

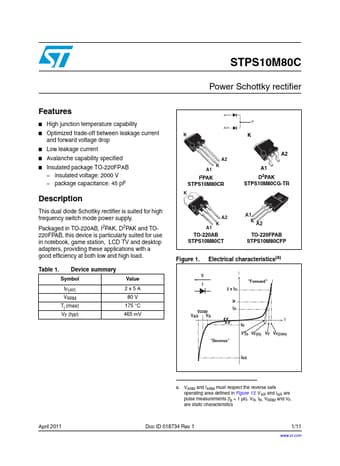

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS10M80CFP, STPS10M80C
Manufacturer
STMicroelectronics ↗
File Size
116.91 KB
Datasheet
STPS10M80C-STMicroelectronics.pdf
Description
Power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS10M80CFP, STPS10M80C.
Please refer to the document for exact specifications by model.
