STPS15H100C

High voltage power Schottky rectifier

STPS15H100C Features

* Negligible switching losses

* Low leakage current

* Good trade off between leakage current and forward voltage drop

* Low thermal resistance

* Avalanche capability specified

* ECOPACK®2 compliant component for DPAK on demand Datasheet - production data Description Dual ce

STPS15H100C General Description

Dual center tab Schottky rectifier suited for switched mode power supply and high frequency DC to DC converters. Packaged in DPAK, this device is intended for use in high frequency inverters. Table 1. Device summary Symbol Value IF(AV) VRRM Tj VF (typ) 2 x 7.5 A 100 V 175 °C 0.62 V December 20.

STPS15H100C Datasheet (207.08 KB)

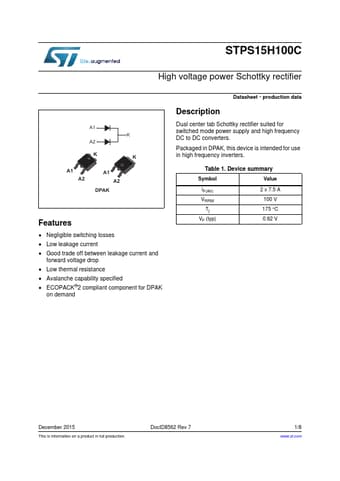

Preview of STPS15H100C PDF

Datasheet Details

Part number:

STPS15H100C

Manufacturer:

STMicroelectronics ↗

File Size:

207.08 KB

Description:

High voltage power schottky rectifier.
