STPS1545 Datasheet - STMicroelectronics

STPS1545 Power Schottky rectifier

Single chip Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged in TO-220AC, TO-220FPAC or D²PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. Table 1: Device summary.

STPS1545-STMicroelectronics.pdf

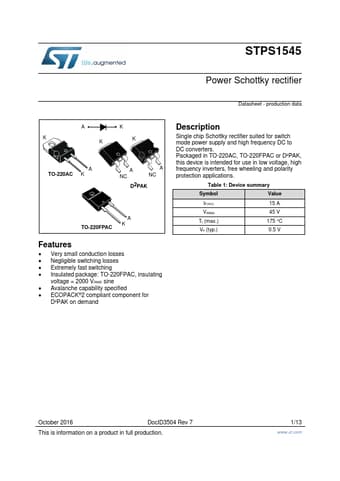

Preview of STPS1545 PDF
STPS1545 Datasheet Preview Page 2 STPS1545 Datasheet Preview Page 3

Datasheet Details

Part number:

STPS1545

Manufacturer:

STMicroelectronics ↗

File Size:

518.00 KB

Description:

Power schottky rectifier.
